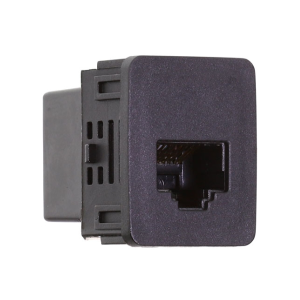

Lightforce RJ45 Passthrough Suit Nissan (CBRJ45N2)

This new Nissan RJ45 Passthrough Connector allows a UHF microphone fitted with a RJ45 Connector, to be integrated directly into the vehicles switch blank location. The UHF head unit can then be remotely mounted with the convenience of just connecting the mic into the RJ45 Passthrough Connector.

Suitable for the following vehicles:

• Nissan Navara NP300 (2016 – Current) (main dash)
• Nissan Pathfinder R52 (2012 – Current)
• Nissan X-Trail T32 (2014 – Current)

Specifications Include:

• Total mounting depth 36mm (excludes connector)
• Housing Material: PVC
• Colour: Black
• Metal shielded around RJ45 receptacle, to minimise RF interference of the connected cables
• Dual internal lateral supports to ensure the UHF plug is fully retained
• RJ45 CAT6 compliant
• LED backlit illumination (seven colours available)
• Made in Australia

Wiring Instructions:

Two wire installation: Connect the red wire to the existing dash light circuit and the back wire to the negative.
