Description
Built-in WiFi and GPS
The GPS adds geolocation and speed data to your videos. With Wi-Fi, connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Over the Cloud via any home or mobile Wi-Fi hotspot.
Built-in Power Management and Smart Parking Mode
The new X series features built-in power management hardware to keep your car battery safe, removing the need for an additional hardwiring kit. Smart parking mode can detect motion or impact and trigger an event recording, so you are protected 24/7.

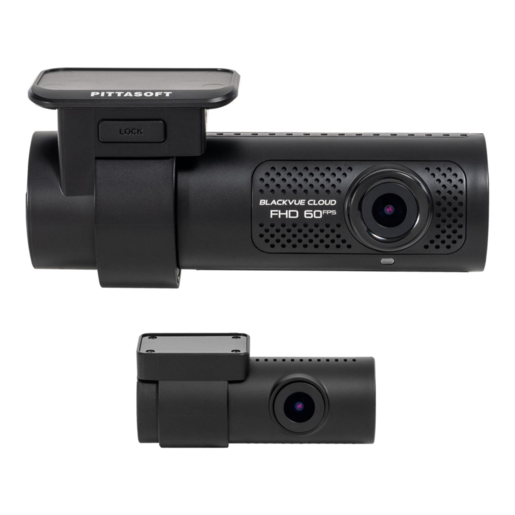

60FPS Combined Full HD Front Camera and 30FPS HD Rear Camera
All new 60FPS front recording gives an incredibly smooth video experience, allowing you to capture details in fast moving scenarios. Don’t miss a detail due to motion blur again. And 30FPS rear vision camera gives you all round vision.
1080P Video Quality With Sony Starvis™
Dual STARVIS™ sensors in Full HD 1080p (front 60 / rear 30 frames per second). Fluid videos of the front and back of your car at a wide 139° view angle. The back-illuminated STARVIS image sensors produce clear details in both night-time and bright daylight thanks to high sensitivity and wide dynamic range.
Event Files Overwrite Protection and SD Card Monitoring
Dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to 50 files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty. Your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Blackvue Cloud Keeps You Connected
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload. Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage. Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Easy installation
Use the provided adhesive and cigarette power adapters to quickly and easily install the dashcam on your windscreen. Or use the provided hardwiring kit to allow your camera to draw power from your battery! Don’t want to install yourself? Give us a call to book in for a quick and easy DR770X dash cam install!
Want to know the difference between the DR770X and DR970X dashcams? Check out our article here.
- Front Camera
- Rear Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
-
Specifications Model Name DR770X-2CH Channel 2CH Highlights Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module Product Dimensions Front: Black / Width 118.5mm x Height 36mm / 104g
Rear: Black / Width 67.4mm x Height 25mm / 25gRear Camera Connection Coaxial cable Memory Support microSD card up to 256GB Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.Parking Mode YES (hardwiring cable included) Parking Mode Event Voice Notifications YES Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 139°, Horizontal 116°, Vertical 61°Resolution Frame Rate Front: Full HD (1920 x 1080) @ 60 fps
Rear: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.Video Codec H.264 (AVC) Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 MbpsFormat Free YES (Adaptive) Event File Overwrite Protection YES (up to 50) SD Card Failure Alert YES Scheduled Reboot YES Video File Extension MP4 Wi-Fi Built-in (802.11 b.g.n) Cloud Compatible YES GPS Built-in (Dual Band : GPS, GLONASS) Microphone Built-in Speaker Built-in Impact Sensor 3-Axis Acceleration Sensor LED Indicators Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Rear: Rear Security LEDButton Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F) Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F ) High Temp Cut Off Approx. 80 °C (176 °F) Backup Battery Built-in supercapacitor Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) Power Consumption Hour Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Actual power consumption may vary depending on use conditions and environment.Certifications Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KCSoftware BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higherApplication BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higherOthers Adaptive Format-Free File Management System Bluetooth Built-in (V2.1+EDR/4.2) LTE External (optional) Average Recording Time on Normal Settings:
64GB: 9 Hr 20 Min
128GB: 18 Hr 40 Min
256 GB: 37 Hr 20 Min
