Description

XRS™ CONNECT 4WD PACK

Name: GME XRS370C4P
SKU: 4413
Price: 650.00 AUD
Availability: InStock

The XRS 4WD pack is the latest addition to the revolutionary range of XRS radios, designed to be smart, adaptable and rugged. Enabled by Bluetooth® Smart technology, the XRS Connect range are a new generation of connected UHF CB radios with unique features exclusive to GME; including the XRS Connect smartphone app, and the recently released, game-changing XRS Connect Location Services smartphone app. Combined with a market-leading Speaker Microphone featuring a bright, anti-glare OLED display and powerful 2 watt front-facing speaker, the XRS Connect range of radios offer outstanding performance in the toughest conditions. The XRS Connect 4WD Pack pairs the top-of-the-line XRS-370C Compact UHF CB Radio, with the Heavy Duty AE4704B radome antenna, the perfect solution for those users looking for the ultimate communications setup for their hardcore 4WD.

Brand

GME

Additional information

UHF Type	Compact UHF, Remote Mic, UHF Pack

Highlights

Rugged, die-cast chassis with built-in speaker
Bluetooth Wireless technology – Smartphone control
Professional grade OLED speaker microphone
Class-leading 2 watt front-facing speaker
User-customisable buttons
Includes Heavy Duty 2.1dBi radome antenna
Download the XRS Connect App on Google Play or the App Store

Specifications

GENERAL

Compliant Specification

Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.

Frequency Range TX

476.425-477.4125 MHz

Number of Channels

Channel Spacing

12.5 kHz

Operation Mode

Simplex or half Duplex with repeater talk around.

Scanning Speed

25 ms per channel (40 channels per second)

Antenna Impedance

50 Ohms nominal

Nominal Battery Voltage

12 volts DC

Operating Voltage Range

10-16 volts DC

Battery Polarity

Negative Earth

Standard Test Voltage

13.8 volts DC

Overvoltage Protection

30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.

Reverse Voltage Protection

Diode Crowbar

Overcurrent Protection

In-line 2 amp fuse

Operating Temperature

-10°C to 60°C

Zones

8 (50 channels per zone)

Scan lists

TRANSMITTER

RF Output

5 watts

Spurious Emission

< – 70 dBc

Frequency Error

< ± 1.5 kHz

Modulation

Maximum Deviation

< ± 2.5 kHz at + 20 dB limiting

Transmit Frequency Response

+6 dB per octave 300 Hz to 3 kHz +1-3 dB

Demodulated Audio Signal to Noise

> 45 dB unweighted

Current Consumption

1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies

38.85 MHz, 450 kHz

Sensitivity

– 122 dBm for 12 dB SINAD unweighted

Selectivity

– 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz

Intermodulation Immunity

-72 dB

Blocking Immunity

-98 dB

Spurious Response Immunity

70 dB

Audio Output Power

3 watts average into 4 Ohms

Audio Signal to Noise

> 45 dB unweighted

Current consumption

< 175 mA muted 750 mA Full volume

Conducted Spurious Emission

< – 70 dBm

MECHANICAL SPECIFICATIONS

External Speaker

3.5 mm mono jack

OTHER

Display type

OLED

In The Box

XRS-370C UHF CB radio with Bluetooth Smart Connectivity

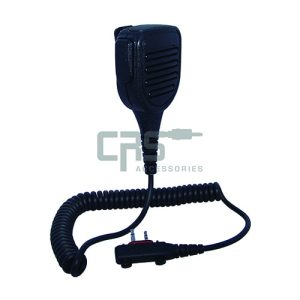

Professional-grade speaker microphone (MC664B)
Heavy Duty UHF CB Radome Antenna (AE4704B)
12V DC power Lead
Mic extension lead (LE040)
Mic extension adaptor kit (AD008)
Quick start guide

GME XRS370C4P

XRS CONNECT 4WD PACK
